Six Strand Complete Set
(Wedge Set with Ferrule)

M-2.5/3ALU M-2.5 Ferrules Complete with #3 Aluminum Wedge Sets
M-2.5/3BRO M-2.5 Ferrules Complete with #3 Bronze Wedge Sets
M-3/3ALU M-3 Ferrules Complete with #3 Aluminum Wedge Sets
M-3/3BRO M-3 Ferrules Complete with #3 Bronze Wedge Sets
M-3.5/3ALUM M-3.5 Ferrules Complete with #3 Aluminum Wedge Sets
M-3.5/3BRO M-3.5 Ferrules Complete with #3 Bronze Wedge Sets
M-4/4ALU M-4 Ferrules Complete with #4 Aluminum Wedge Sets
M-4/4BRO M-4 Ferrules Complete with #4 Bronze Wedge Sets
M-4.5/X-4ALU M-4.5 Ferrules Complete with #X-4 Aluminum Wedge Sets
M-4.5/X-4BRO M-4.5 Ferrules Complete with #X-4 Bronze Wedge Sets
D-4/D-4ALU D-4 Ferrules Complete with #D-4 Aluminum Wedge Sets
D-4/D-4BRO D-4 Ferrules Complete with #D-4 Bronze Wedge Sets
D-4.5/D-4XALU D-4.5 Ferrules Complete with #D-4X Aluminum Wedge Sets
D-4.5/D-4XBRO D-4.5 Ferrules Complete with #D-4X Bronze Wedge Sets
D-4.75/D-4XALU D-4.75 Ferrules Complete with #D-4X Aluminum Wedge Sets
D-4.75/D-4XBRO D-4.75 Ferrules Complete with #D-4X Bronze Wedge Sets
D-5/5ALU D-5 Ferrules Complete with #5 Aluminum Wedge Sets
D-5/5BRO D-5 Ferrules Complete with #5 Bronze Wedge Sets
D-5.5/5ALU D-5.5 Ferrules Complete with #5 Aluminum Wedge Sets
D-5.5/5BRO D-5.5 Ferrules Complete with #5 Bronze Wedge Sets
B-4/D-4ALU B-4 Ferrules Complete with #D-4 Aluminum Wedge Sets
B-4/D-4BRO B-4 Ferrules Complete with #D-4 Bronze Wedge Sets
B-4.5/D-4XALU B-4.5 Ferrules Complete with #D-4X Aluminum Wedge Sets
B-4.5/D-4XBRO B-4.5 Ferrules Complete with #D-4X Bronze Wedge Sets
B-5/5ALU B-5 Ferrules Complete with #5 Aluminum Wedge Sets
B-5/5BRO B-5 Ferrules Complete with #5 Bronze Wedge Sets
B-5.5/5ALU* B-5.5 Ferrules Complete with #5 Aluminum Wedge Sets
B-5.5/5BRO* B-5.5 Ferrules Complete with #5 Bronze Wedge Sets
B-6/6ALU B-6 Ferrules Complete with #6 Aluminum Wedge Sets
B-6/6BRO B-6 Ferrules Complete with #6 Bronze Wedge Sets
B-6.5/6ALU B-6.5 Ferrules Complete with #6 Aluminum Wedge Sets
B-6.5/6BRO B-6.5 Ferrules Complete with #6 Bronze Wedge Sets
L-6/6ALU L-6 Ferrules Complete with #6 Aluminum Wedge Sets
L-6/6BRO L-6 Ferrules Complete with #6 Bronze Wedge Sets
L-6.5/6ALU* L-6.5 Ferrules Complete with #6 Aluminum Wedge Sets
L-6.5/6BRO* L-6.5 Ferrules Complete with #6 Bronze Wedge Sets
L-7/7ALU L-7 Ferrules Complete with #7 Aluminum Wedge Sets
L-7/7BRO L-7 Ferrules Complete with #7 Bronze Wedge Sets
L-7.5/7ALU L-7.5 Ferrules Complete with #7 Aluminum Wedge Sets
L-7.5/7BRO L-7.5 Ferrules Complete with#7 Bronze Wedge Sets
L-8/8ALU L-8 Ferrules Complete with #8 Aluminum Wedge Sets
L-8/8BRO L-8 Ferrules Complete with #8 Bronze Wedge Sets
L-8.5/8ALU L-8.5 Ferrules Complete with #8 Aluminum Wedge Sets
L-8.5/8BRO L-8.5 Ferrules Complete with #8 Bronze Wedge Sets
J-7/7ALU J-7 Ferrules Complete with #7 Aluminum Wedge Sets
J-7/7BRO J-7 Ferrules Complete with #7 Bronze Wedge Sets
J-8/8ALU J-8 Ferrules Complete with #8 Aluminum Wedge Sets
J-8/8BRO J-8 Ferrules Complete with #8 Bronze Wedge Sets
J-8.5/8ALU* J-8.5 Ferrules Complete with #8 Aluminum Wedge Sets
J-8.5/8BRO* J-8.5 Ferrules Complete with #8 Bronze Wedge Sets
J-9/9ALU J-9 Ferrules Complete with #9 Aluminum Wedge Sets
J-9/9BRO J-9 Ferrules Complete with #9 Bronze Wedge Sets
J-10/10ALU J-10 Ferrules Complete with #10 Aluminum Wedge Sets
J-10/10BRO J-10 Ferrules Complete with #10 Bronze Wedge Sets
S-9/9ALU S-9 Ferrules Complete with #9 Aluminum Wedge Sets
S-9/9BRO S-9 Ferrules Complete with #9 Bronze Wedge Sets
S-10/10ALU S-10 Ferrules Complete with #10 Aluminum Wedge Sets
S-10/10BRO S-10 Ferrules Complete with #10 Bronze Wedge Sets
S-11/11ALU S-11 Ferrules Complete with #11 Aluminum Wedge Sets
S-11/11BRO S-11 Ferrules Complete with #11 Bronze Wedge Sets
S-11.5/11ALU S-11.5 Ferrules Complete with #11 Aluminum Wedge Sets
S-11.5/11BRO S-11.5 Ferrules Complete with #11 Bronze Wedge Sets
S-12/12ALU S-12 Ferrules Complete with #12 Aluminum Wedge Sets
S-12/12BRO S-12 Ferrules Complete with #12 Bronze Wedge Sets
(*For Swaged Rope)
Six Strand Wedge Sets Only

3ALU #3 Aluminum Wedge Sets
3BRO #3 Bronze Wedge Sets
4ALU #4 Aluminum Wedge Sets
4BRO #4 Bronze Wedge Sets
5ALU #5 Aluminum Wedge Sets
5BRO #5 Bronze Wedge Sets
6ALU #6 Aluminum Wedge Sets
6BRO #6 Bronze Wedge Sets
7ALU #7 Aluminum Wedge Sets
7BRO #7 Bronze Wedge Sets
8ALU #8 Aluminum Wedge Sets
8BRO #8 Bronze Wedge Sets
9ALU #9 Aluminum Wedge Sets
9BRO #9 Bronze Wedge Sets
10ALU #10 Aluminum Wedge Sets
10BRO #10 Bronze Wedge Sets
11ALU #11 Aluminum Wedge Sets
11BRO #11 Bronze Wedge Sets
12ALU #12 Aluminum Wedge Sets
12BRO #12 Bronze Wedge Sets
X-4ALU #X-4 Aluminum Wedge Sets
X-4BRO #X-4 Bronze Wedge Sets
D-4XALU #D-4X Aluminum Wedge Sets
D-4XBRO #D-4X Bronze Wedge Sets
D-4ALU #D-4 Aluminum Wedge Sets
D-4BRO #D-4 Bronze Wedge Sets
Ferrules Only

M-2.5 M-2.5 Ferrules for 5/16" rope
M-3 M-3 Ferrules for 3/8" rope
M-3.5 M-3.5 Ferrule for 7/16" rope
M-4 M-4 Ferrules for 1/2" rope
M-4.5 M-4.5 Ferrules for 9/16" rope
D-4 D-4 Ferrules for 1/2" rope
D-4.5 D-4.5 Ferrules for 9/16" rope
D-4.75 D-4.75 Ferrules for 9/16" rope
D-5 D-5 Ferrules for 5/8" rope
D-5.5* D-5.5 Ferrules for 5/8" rope
B-4 B-4 Ferrules for 1/2" rope
B-4.5 B-4.5 Ferrules for 9/16" rope
B-5 B-5 Ferrules for 5/8" rope
B-5.5 B-5.5 Ferrules for 5/8" rope
B-6 B-6 Ferrules for 3/4" rope
B-6.5* B-6.5 Ferrules for 3/4" rope
L-6 L-6 Ferrules for 3/4" rope
L-6.5 L-6.5 Ferrules for 3/4" rope
L-7 L-7 Ferrules for 7/8" rope
L-7.5 L-7.5 Ferrules for 7/8" rope
L-8 L-8 Ferrules for 1" rope
L-8.5 L-8.5 Ferrules for 1" rope
J-7 J-7 Ferrules for 7/8" rope
J-8 J-8 Ferrules for 1" rope
J-8.5 J-8.5 Ferrules for 1" rope
J-9 J-9 Ferrules for 1-1/8" rope
J-10 J-10 Ferrules for 1-1/4" rope
S-9 S-9 Ferrules for 1-1/8" rope
S-10 S-10 Ferrules for 1-1/4" rope
S-11 S-11 Ferrules for 1-3/8" rope
S-11.5 S-11.5 Ferrules for 1-3/8" rope
S-12 S-12 Ferrules for 1-1/2" rope
(* For Swaged Ropes)
Seven Strand Complete Set
(Wedge Set with Ferrule)

D-5/5(7)ALU D-5 Ferrules Complete with #5 Seven Strand Aluminum Wedge Sets
D-5/5(7)BRO D-5 Ferrules Complete with #5 Seven Strand Bronze Wedge Sets
B-5/5(7)ALU B-5 Ferrules Complete with #5 Seven Strand Aluminum Wedge Sets
B-5/5(7)BRO B-5 Ferrules Complete with #5 Seven Strand Bronze Wedge Sets
B-6/6(7)ALU B-6 Ferrules Complete with #6 Seven Strand Aluminum Wedge Sets
B-6/6(7)BRO B-6 Ferrules Complete with #6 Seven Strand Bronze Wedge Sets
L-6/6(7)ALU L-6 Ferrules Complete with #6 Seven Strand Aluminum Wedge Sets
L-6/6(7)BRO L-6 Ferrules Complete with #6 Seven Strand Bronze Wedge Sets
L-7/7(7)ALU L-7 Ferrules Complete with #7 Seven Strand Aluminum Wedge Sets
L-7/7(7)BRO L-7 Ferrules Complete with #7 Seven Strand Bronze Wedge Sets
L-8/8(7)ALU L-8 Ferrules Complete with #8 Seven Strand Aluminum Wedge Sets
L-8/8(7)BRO L-8 Ferrules Complete with #8 Seven Strand Bronze Wedge Sets
J-7/7(7)ALU J-7 Ferrules Complete with #7 Seven Strand Aluminum Wedge Sets
J-7/7(7)BRO J-7 Ferrules Complete with #7 Seven Strand Bronze Wedge Sets
J-8/8(7)ALU J-8 Ferrules Complete with #8 Seven Strand Aluminum Wedge Sets
J-8/8(7)BRO J-8 Ferrules Complete with #8 Seven Strand Bronze Wedge Sets
J-9/9(7)ALU J-9 Ferrules Complete with #9 Seven Strand Aluminum Wedge Sets
J-9/9(7)BRO J-9 Ferrules Complete with #9 Seven Strand Bronze Wedge Sets
J-10/10(7)ALU J-10 Ferrules Complete with #10 Seven Strand Aluminum Wedge Sets
J-10/10(7)BRO J-10 Ferrules Complete with #10 Seven Strand Bronze Wedge Sets
Seven Strand Wedge Sets Only

5(7)ALU #5 Aluminum 7-Strand Wedge Sets
5(7)BRO #5 Bronze 7-Strand Wedge Sets
6(7)ALU #6 Aluminum 7-Strand Wedge Sets
6(7)BRO #6 Bronze 7-Strand Wedge Sets
7(7)ALU #7 Aluminum 7-Strand Wedge Sets
7(7)BRO #7 Bronze 7-Strand Wedge Sets
8(7)ALU #8 Aluminum 7-Strand Wedge Sets
8(7)BRO #8 Bronze 7-Strand Wedge Sets
9(7)ALU #9 Aluminum 7-Strand Wedge Sets
9(7)BRO #9 Bronze 7-Strand Wedge Sets
10(7)ALU #10 Aluminum 7-Strand Wedge Sets
10(7)BRO #10 Bronze 7-Strand Wedge Sets
EIGHT STRAND COMPLETE WEDGE SETS

D-5/5(8)BRO D-5 Ferrules Complete with #5 8-Strand Bronze Wedge Sets
L-8.5/8(8)BRO L-8.5 Ferrules Complete with #8 8-Strand Bronze Wedge Sets
DRUMLIFTS

DR-1 Drumlifts quantity 1-12
DR-2 Drumlifts quantity 13-24
DR-3 Drumlifts quantity 25+
DR-1M Drumlifts w/Masterlink 1-12
DR-2M Drumlifts w/Masterlink 13-24
DR-3M Drumlifts w/Masterlink 25+


Sizing

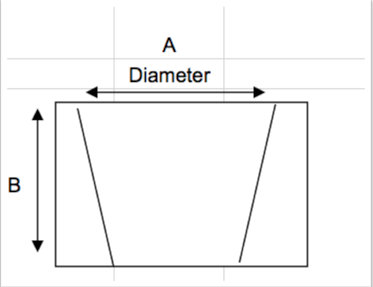

Mark Number Sizes (Inches) A-Inches B-Inches Color Wedge Number Weight Pounds
M-2.5 5/16 1-1/8 1-1/4 Yellow 3 1/4
M-3 3/8 1-1/8 1-1/4 Green 3 1/4
M-4 1/2 1-1/8 1-1/4 Silver 4 1/4
M-4.5 9/16 1-1/8 1-1/4 Orange X-4 1/4
D-4 1/2 1-1/2 1-3/4 Green D-4 1/2
D-4.5 9/16* 1-1/2 1-3/4 Green/White D4X 1/2
D-4.75 9/16 Swaged 1-1/2 1-3/4 Blue/White D4X 1/2
D-5 5/8 1-1/2 1-3/4 Pink 5 3/4
D-5.5 5/8 Swaged 1-1/2 1-3/4 Pink/White 1
B-4 1/2 1-5/8 2 Brown/Silver D-4 1
B-4.5 9/16* 1-5/8 2 Brown/White D4X 1
B-5 5/8 1-5/8 2 Brown 5 1
B-5.5 5/8 Swaged 1-5/8 2 Brown/Gray 5 1
B-6 3/4 1-5/8 2 Gray 6 1
B-6.5 3/4 Swaged 1-5/8 2 Gray/White 6 1
L-6 3/4* 2-1/8 2-9/10 White 6 2
L-7 7/8* 2-1/8 2-9/16 Black 7 2
L-7.5 7/8 Swaged 2-1/8 2-9/16 Black/Green 7 2
L-8 1 2-1/8 2-9/16 Green 8 2
L-8.5 1 Swaged 2-1/8 2-9/16 Green/Yellow 8 2
J-7 7/8 2-3/8 2-9/16 Red 7 2
J-8 1* 2-3/8 2-9/16 Blue 8 2
J-9 1-1/8* 2-3/8 2-9/16 Yellow 9 2
J-10 1-1/4* 2-3/8 2-9/16 Orange 10 2
S-10 1-1/4 2-3/4 3 Purple 10 3
S-11 1-3/8 2-3/4 3 Gold 11 3
S-11.5 1-3/8 Swaged 2-3/4 3 Gold/Black 11 3
S-12 1-1/2 2-3/4 3 Gold/Red 11 3
* Available Swaged Rope

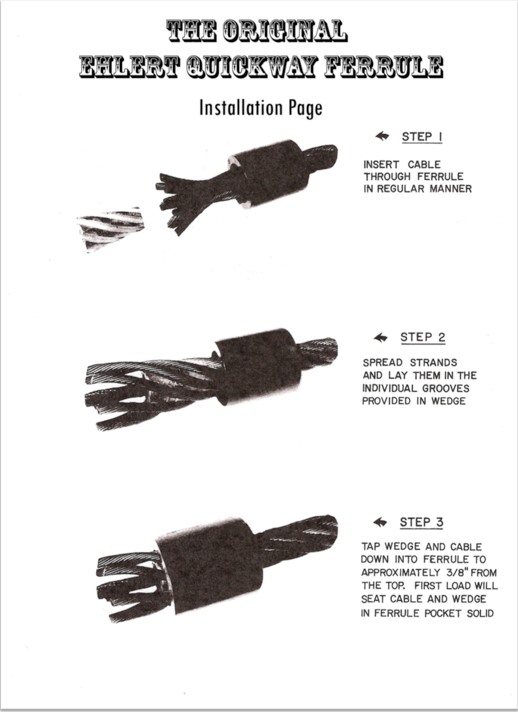

Installation DIAGRAM

wedge ferrule

wedge ferrule
